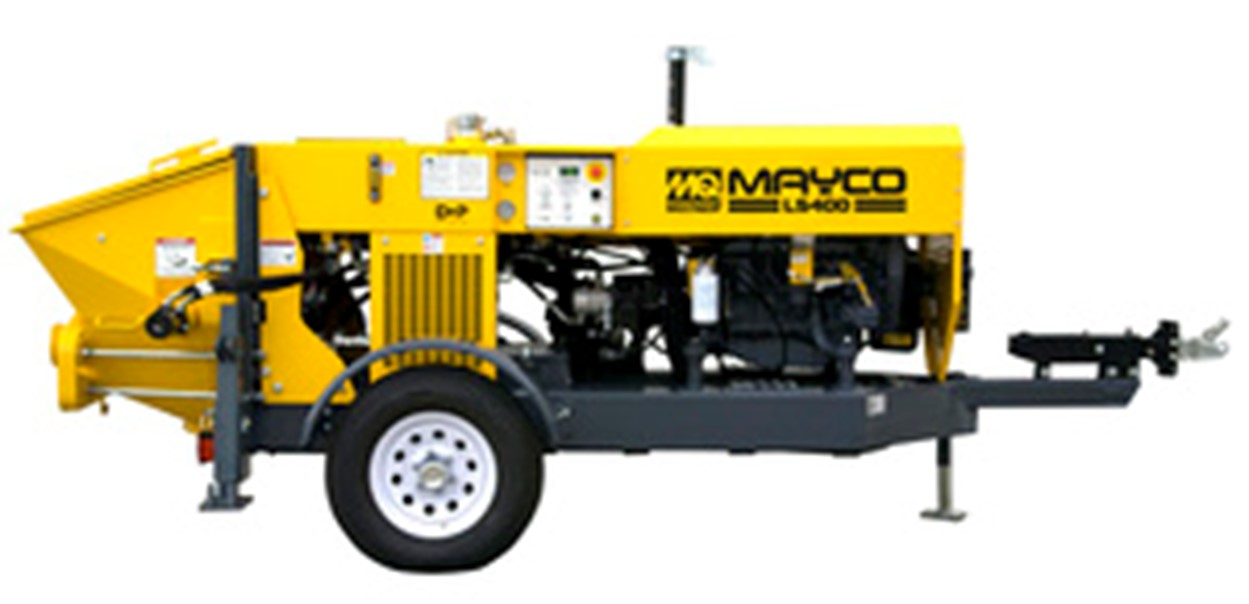

LS400
40yd/hr, Deutz BF4L2011F 77hp Turbo Diesel
The Economical Mid-range Concrete Pump
Filling a niche that has been neglected, the Mayco LS400 Concrete Pump has the versatility to efficiently place 2" line mixes (3/8" pea gravel, masonry grout, shotcrete), structural concrete containing up to 1.5" aggregate, as well as everything in-between. Equipped with 6" diameter concrete cylinders and utilizing a 36" stroke ensures that the LS400 will smoothly pump even low slump concrete mix designs.
Mayco's balanced independent hydraulic circuit guarantees a smooth changeover throughout, reducing to a minimum the tiring pump surge and premature wear on placing components. The 'true reverse' feature allows for immediate reversal of the pump stroke at any point allowing you to avoid troublesome line blockages in both a timely and safe manner.
The powerful Deutz 77hp diesel engine helps put meaningful working force behind the LS400's 1100psi concrete delivery pressure so that you get true performance at distances rarely achieved by other concrete pumps in this class. The Mayco LS400 Concrete Pump is the true value choice for contractors who need performance without breaking the bank.
Concrete piston face pressure of 1100 PSI (76 Bar)
Concrete cylinder diameter is 6 inches (152 mm) with 36-inch stroke (914 mm)
Horizonal pumping distance of 1000 feet (300 meters), vertical is 300 feet (91 meters)
Powered by a 77-hp (57.4 kW) Deutz BF4L2011 turbo diesel
Designed for aggregate sized up to 1-1/2 inches (38 mm)
Hopper remixer/agitator standard
True Reverse allows stroke change during any point in the pumping cycle
Hard faced wear components for longer life
Variable volume output (from the control panel) from 0-to-40 cubic yards (30 cubic meters) per hour
Ideal for use with shotcrete, masonry block fill, slabs,
footings, basements, & compaction grouting
Innovative DCP (Digital Control Panel) solid state electronic control box with full diagnostic &
performance monitoring
Optional wireless radio remote has a range of 1000 feet (300 meters)
Optional rear hydraulic outriggers
Optional air or electric vibrators for hopper screen
Also available as LS400WR (wireless radio remote pre-installed)
Unit Specifications
Hopper Height. 1092 mm
Hopper Capacity 0.283 L
Pump Outlet 127 mm
Concrete Cylinders 152 x 914 mm
Hydraulic Cylinders 76 x 914 mm
Hydraulic Oil Capacity 219 L
Fuel Tank Capacity 151 L
Brake Type Hydraulic Surge
Pumping Specifications
Pumping Rate per Hour 0-30 m
Vertical Pumping Height 91 m
Horizontal Pumping Distance 305 m
Max. Concrete Pressure 76 bar
Max. Aggregate Size 38 mm
Note: These figures will vary due to concrete mix design, line size, and job site conditions.
Dimensions & Weights
Overall Length 4394 mm
Overall Width 1727 mm
Overall Height 1778 mm
Operating Weight 2210 kg
Notice: Features and equipment specifications are subject to change without notice.
